Описание

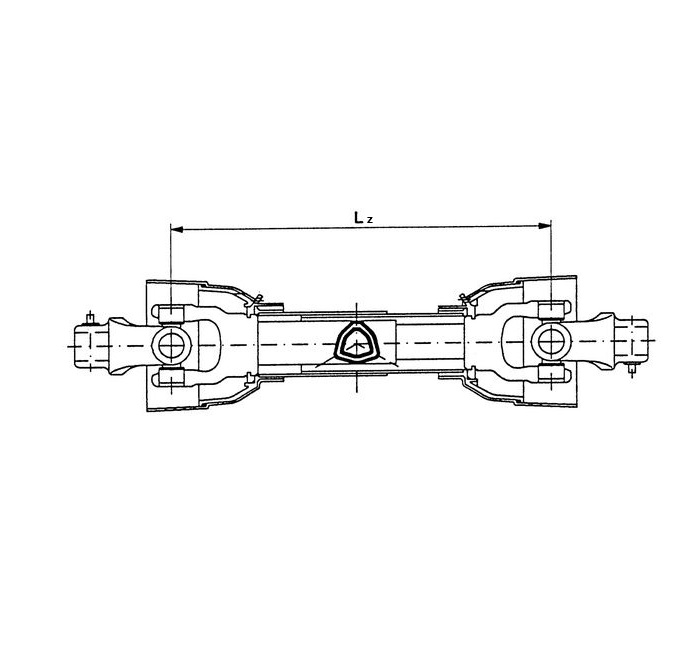

Кардан 6х6 L-1210 mm каре 30.2х79.6 PTO50 35kW GoPart
Триъгълен профил
GoPart
Technical information –
Max. dynamic capacity 540 rpm: 35 kW, 620 Nm
Max. dynamic capacity 1000 rpm: 54 kW, 515 Nm
Size code PTO 50
Connection outside diameter by tractor side 1-3/8 in
Connection number of splines/grooves tractor side 6
Connection Ø machine side 1-3/8 in
Connection number of splines/grooves machine side 6
Length 1210 mm
Power per 540 rpm 35 kW
Power per 1000 rpm 54 kW
Cross joint bush diameter tractor side 30.2 mm
Cross joint length tractor side 79.6 mm
Cross joint bush diameter machine side 30.2 mm
Cross joint length machine side 79.6 mm
