Описание
Кардан 6х6 Lz-560 mm. каре 22х54 12 kW триъгълен профил заключване със завъратне
Триъгълен профил

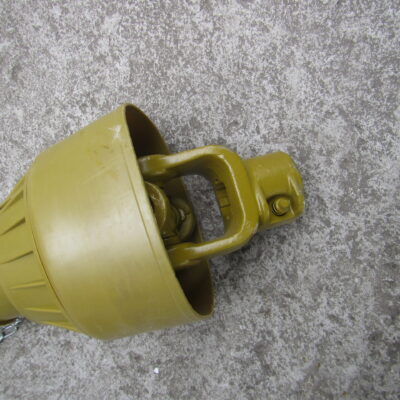

PTO10T560GP PTO10 Shaft 560mm
GoPart
Part number PTO10T560GP
Technical information –
Max. dynamic capacity 540 rpm: 12 kW, 210 Nm
Max. dynamic capacity 1000 rpm: 18 kW, 170 Nm
Size code PTO 10
Connection outside diameter by tractor side 1-3/8 in
Connection number of splines/grooves tractor side 6
Connection Ø machine side 1-3/8 in
Connection number of splines/grooves machine side 6
Lz – 560 mm
Power per 540 rpm 12 kW
Power per 1000 rpm 18 kW
Cross joint bush diameter tractor side 22 mm
Cross joint length tractor side 54 mm
Cross joint bush diameter machine side 22 mm
Cross joint length machine side 54 mm
