Описание
Кардан с тресчотка 6х6 Lz-860 mm. каре 27х74.6 26kW с прещракваща муфа PTO40T860ORCGP за роторни косачки
GoPart

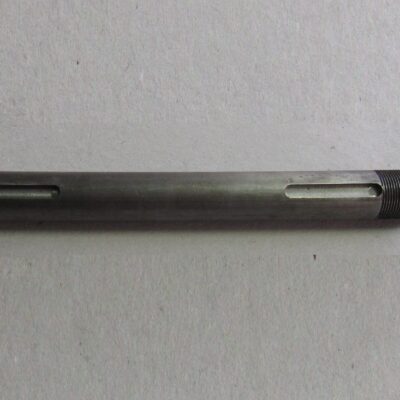

Триъгълен профил
Technical information PTO40 –
Max. dynamic capacity 540 rpm: 26 kW, 460Nm –
Max. dynamic capacity 1000 rpm: 40 kW, 380Nm
Size code PTO 40
Connection outside diameter by tractor side 1-3/8 in
Connection number of splines/grooves tractor side 6
Connection Ø machine side 1-3/8 in
Connection number of splines/grooves machine side 6 Length 860 mm
Power per 540 rpm 26 kW
Power per 1000 rpm 40 kW
Cross joint bush diameter tractor side 27 mm
Cross joint length tractor side 74.6 mm
Cross joint bush diameter machine side 27 mm
Cross joint length machine side 74.6 mm
