Описание

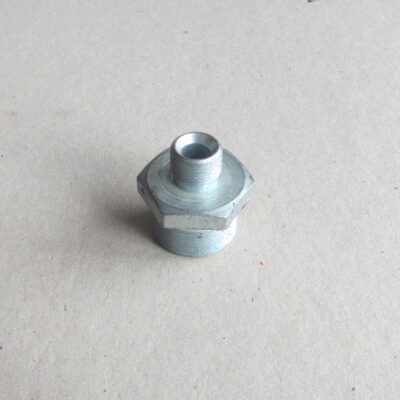

Нипел 1″ – 5/8″ VNB1610
Part number VNB1610
EAN
Unit Each
Product details
Internal 60º negative
Cone angle 60 °
Shape Straight – 2 connection sides
Connection no 1 type Thread
Connection no 1 type – male/female Male
AConnection no 1 thread diameter 1 Inch
Connection no 1 thread type BSP
Connection no 1 hex size 41 mm
Connection 2, type Thread
Connection 2, type – male/female Male
BConnection 2, thread diameter 5/8 Inch
Connection 2, thread type BSP DIN standard 7627
Total length 47 mm
Material Steel
Surface treatment Galvanised
Max working pressure 190 BAR
