Описание

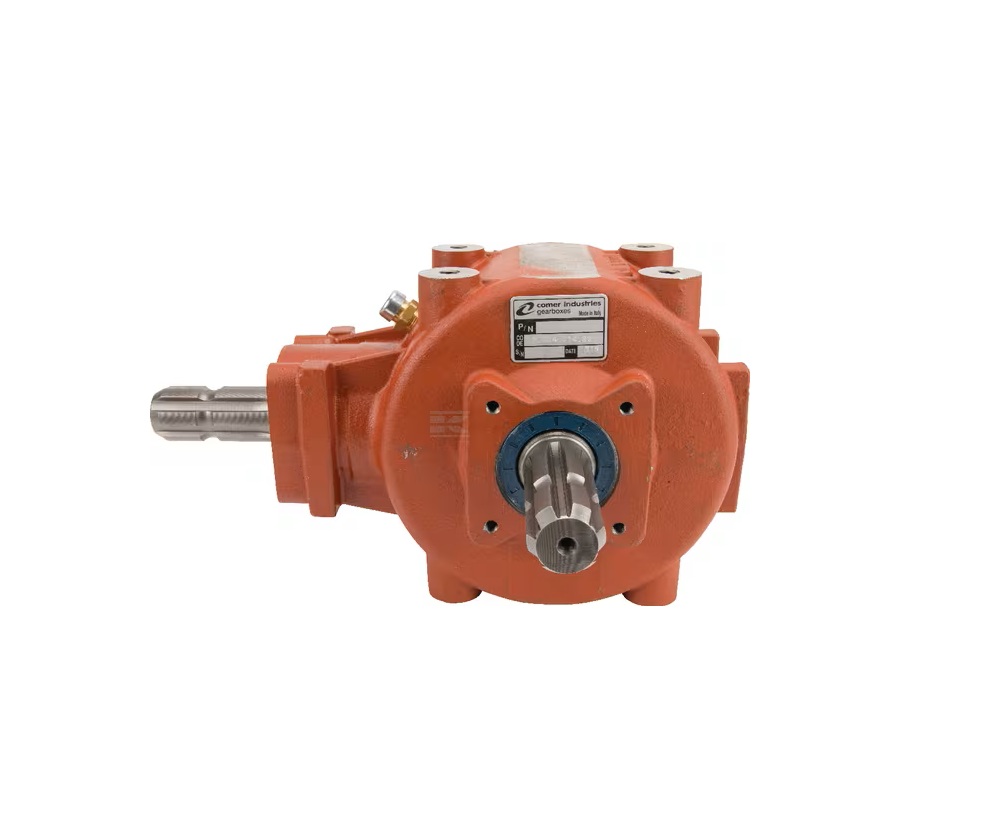

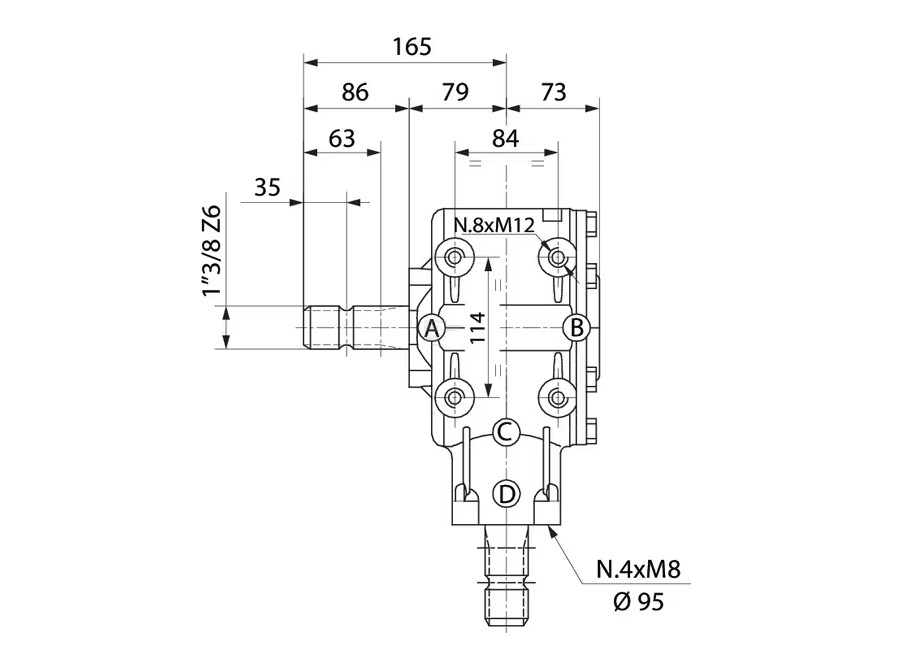

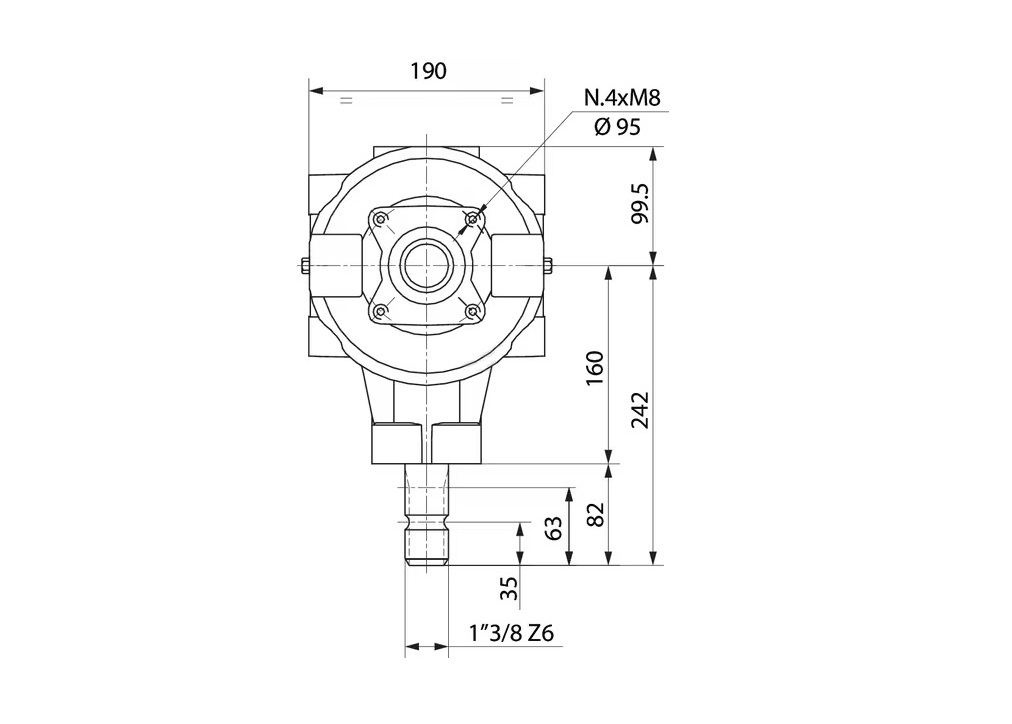

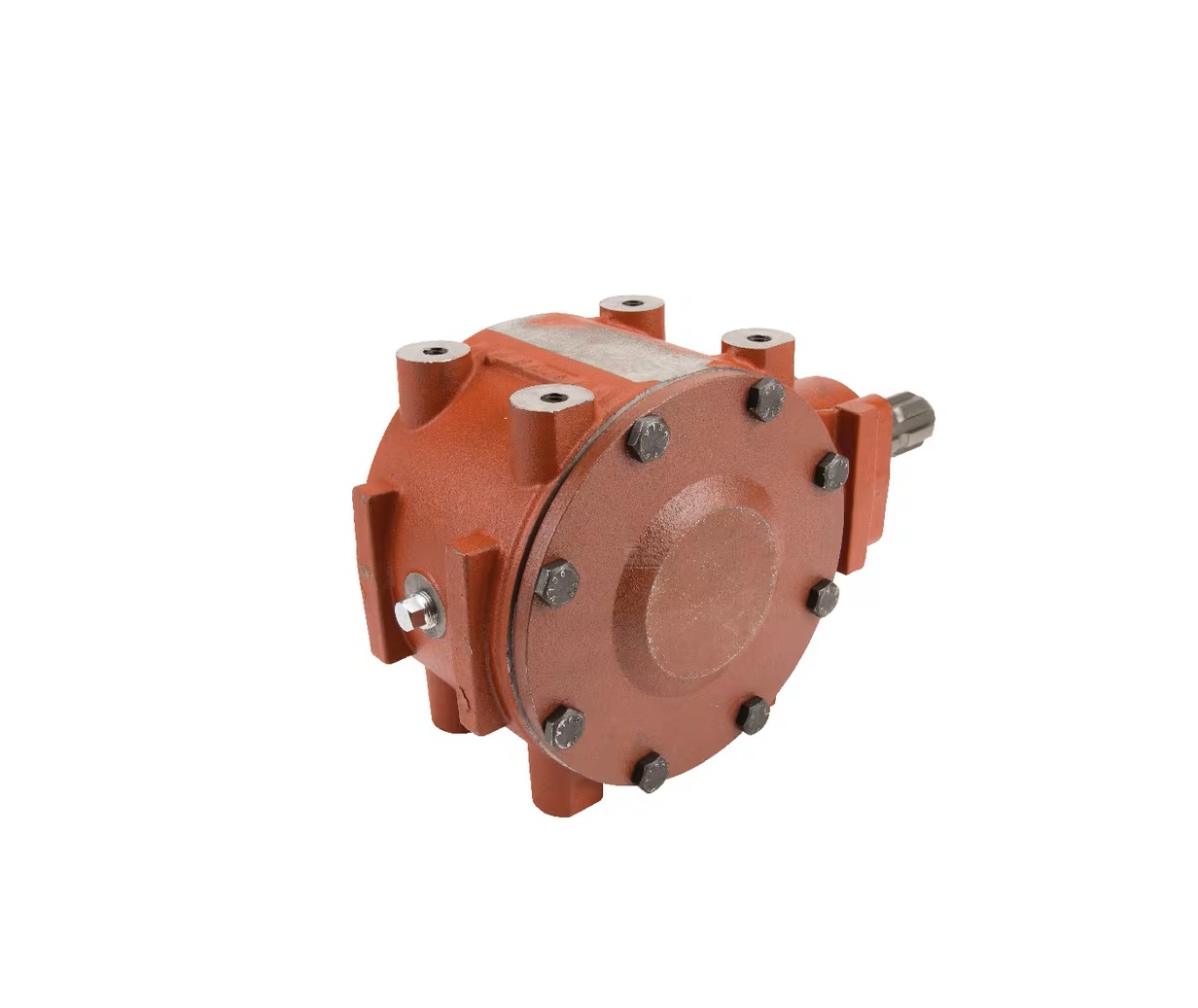

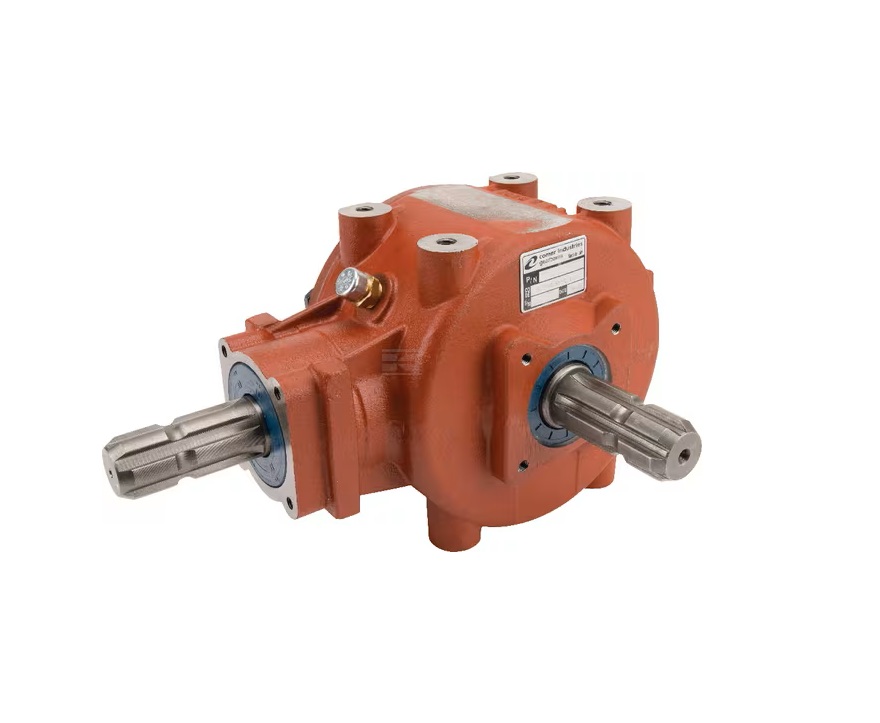

Редуктор 1/1.93 FM.S42.I193L Comer T304A за Pronar 300/260
| Ratio factor |
1:1.93
|
|
|---|---|---|
| Connection 1 Outside Diameter inch and splines |
1.3/8-6
|
|
| Connection 1 outside diameter |
n/a
|
|
| Connection 1 inside diameter |
n/a
|
|
| Connection 2 Outside Diameter inch and splines |
1.3/8-6
|
|
| Connection 2 outside diameter |
n/a
|
|
| Connection 2 inside diameter |
n/a
|
|
| Model |
T-304A
|
|
| Connection 3 Outside Diameter inch and splines |
n/a
|
|
| Connection 3 outside diameter |
n/a
|
|
| Max. input power |
40,4 kW
|
|
| Max. input rotation speed |
540 r/min
|
|
| Max. output power |
40,4 kW
|
|
| Max. output power |
54 HP
|
|
| Max. output torque |
3590 N·m
|
|
| Gear arrangement increasing |
23-24
|
|
| Contains oil |
No
|
|
| Max. oil capacity |
1,1 l
|
|
| Max. oil change interval |
500 h
|
|
| Oil SAE viscosity grade |
80W-90
|
|
| Housing material |
Cast iron GG25
|
|
| Suitable for machine/vehicle brand |
|
|
| Weight |
19 kg
|
